ASUS TUF GAMING B660M-PLUS WIFI D4, performance, connectivity and durability

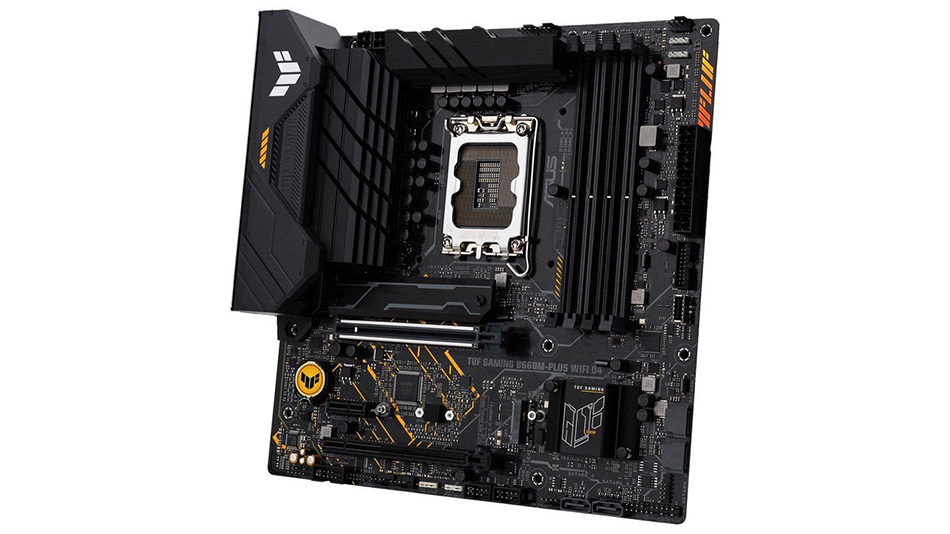

The ASUS TUF GAMING B660M-PLUS WIFI D4 motherboard is a Micro-ATX motherboard. It incorporates features worthy of an ATX model and stands out with 10 +1 DrMOS power stages. It is therefore a board that provides efficient power management, but which, in addition, supports PCIe 5.0. Indeed, the manufacturer offers long-lasting performance here. It also includes two M.2 PCIe 4.0 slots, an Intel Wi-Fi 6 module and a Realtek 2.5 Gb Ethernet port. Its DDR4 memory interface is compatible with frequencies up to 5333 MHz. Let’s take a closer look at the specifications

ASUS TUF GAMING B660M-PLUS WIFI D4, robust design and complete connectivity

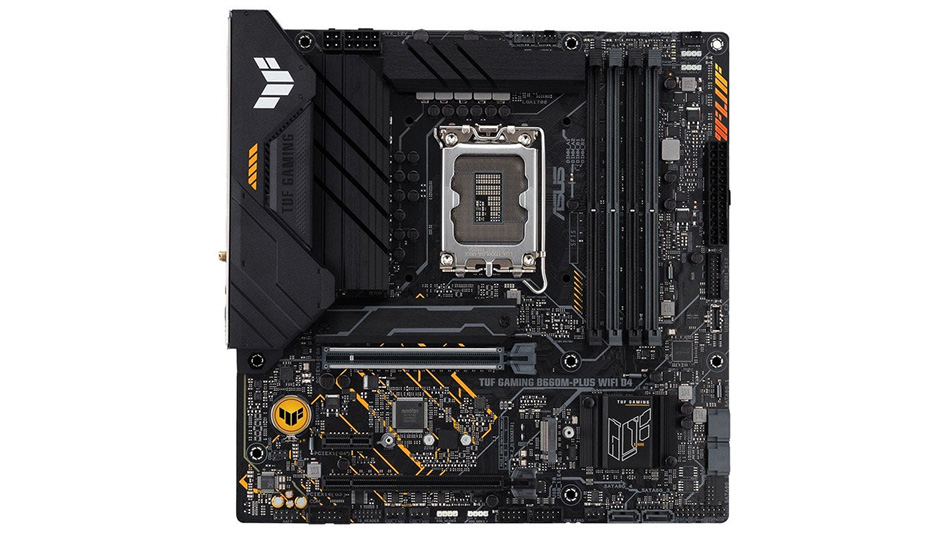

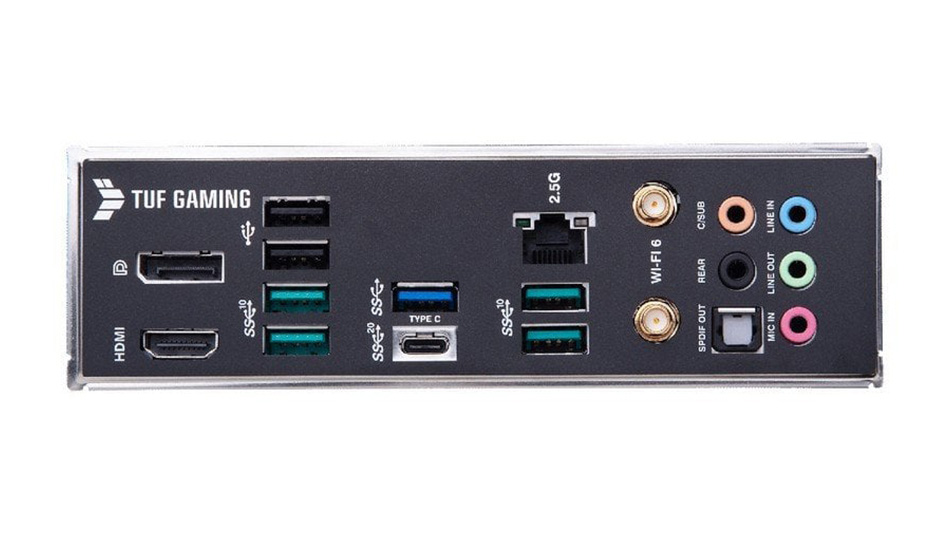

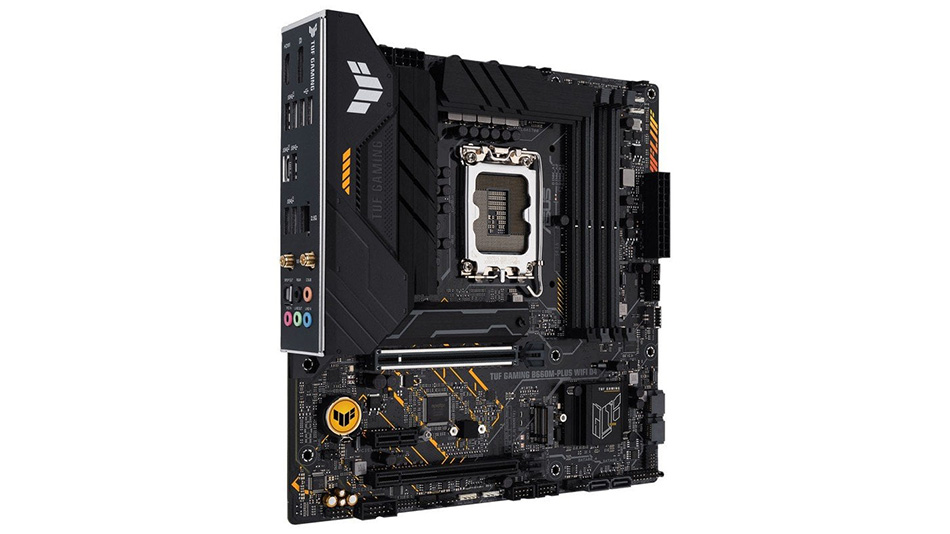

With its massive heatsinks, this motherboard ensures optimal cooling, even if space around the memory slots remains quite tight. It adopts the LGA 1700 socket, without backward compatibility with older LGA 1200/115 X coolers. At the rear, there is a PCIe 5.0 x16 slot, as well as PCIe 4.0 x1 and PCIe 3.0 x4 slots. The power connectors at the top of the board include an 8-pin + 4-pin. There are also three PWM fan headers and two 3-pin RGB headers. On the storage side, the B660M-PLUS WIFI D4 offers two SATA ports. It has a USB 3.0 header, a USB 3.2 Gen 1 Type-C header, and the traditional 24-pin connector. The manufacturer offers an impressive selection of rear ports here. In fact, the card sports eight USB ports, two video outputs, Wi-Fi 6 antennas, and the usual audio inputs/outputs.

Organization and Options for All Levels

The UEFI BIOS is well-organized. There’s an EZ mode for beginners and an Advanced mode for experienced users. It’s also possible to access the Ai Tweaker section, which allows you to adjust processor and memory settings. The most demanding users will likely want to go to the Advanced tab, which gives access to chipset settings. Options like Re-Size BAR or TPM will be of interest to them. Furthermore, the hardware monitor displays temperatures, voltages, and fan speeds. Finally, the Q-Fan Control utility allows you to customize cooling. There are therefore the various options necessary for optimal operation for gamers.

ASUS TUF GAMING B660M-PLUS WIFI D4, connectivity and advanced features

The ASUS TUF GAMING B660M-PLUS WIFI D4 motherboard offers a comprehensive set of modern features. In addition to PCIe 5.0, it has two M.2 slots equipped with efficient heatsinks. It also features Intel Wi-Fi 6 connectivity for high-performance wireless connections and a 2.5 Gb Ethernet port for fast network transfers. The USB-C 3.2 Gen 2 port allows for versatile connectivity. For backlighting, the board supports ASUS Aura Sync technology, which allows for perfect synchronization of RGB lighting with other compatible components. The integration of artificial intelligence noise reduction is a good point, as it improves the audio quality of microphones during communications.
