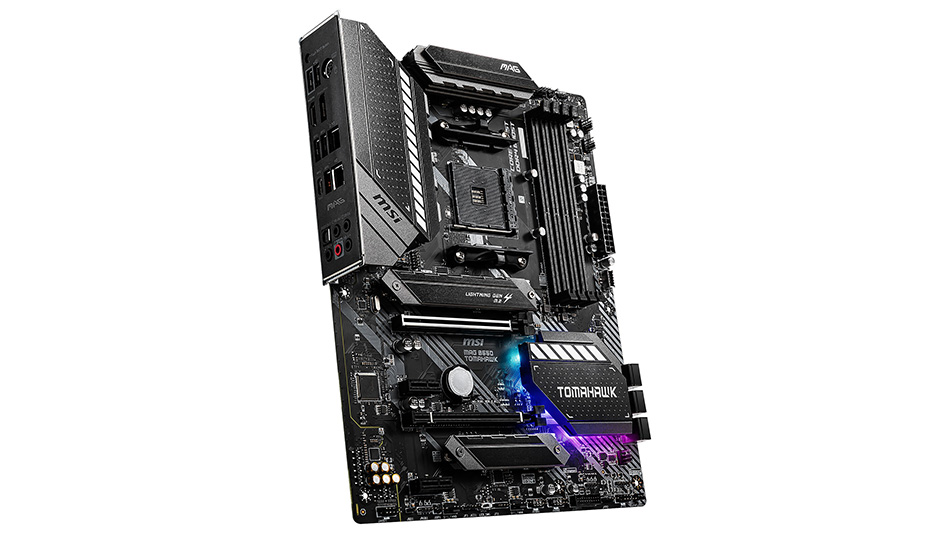

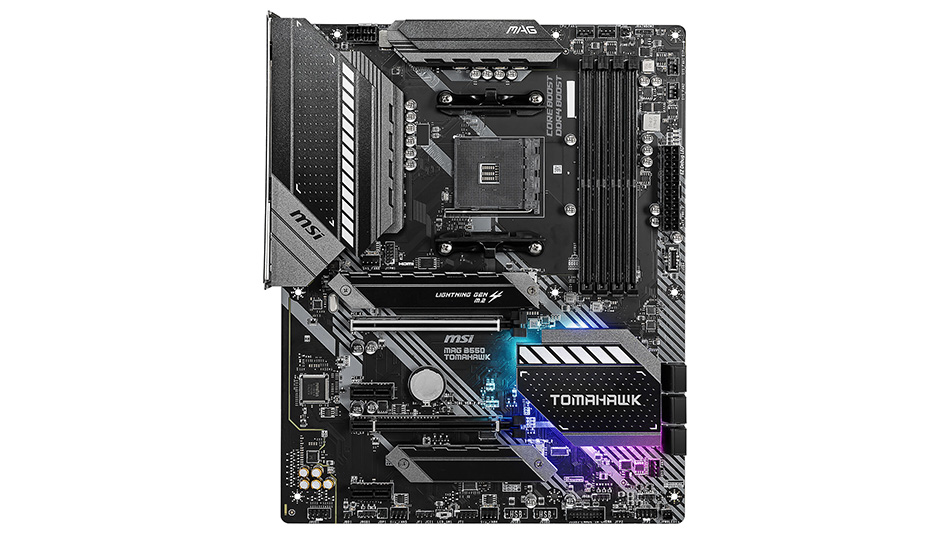

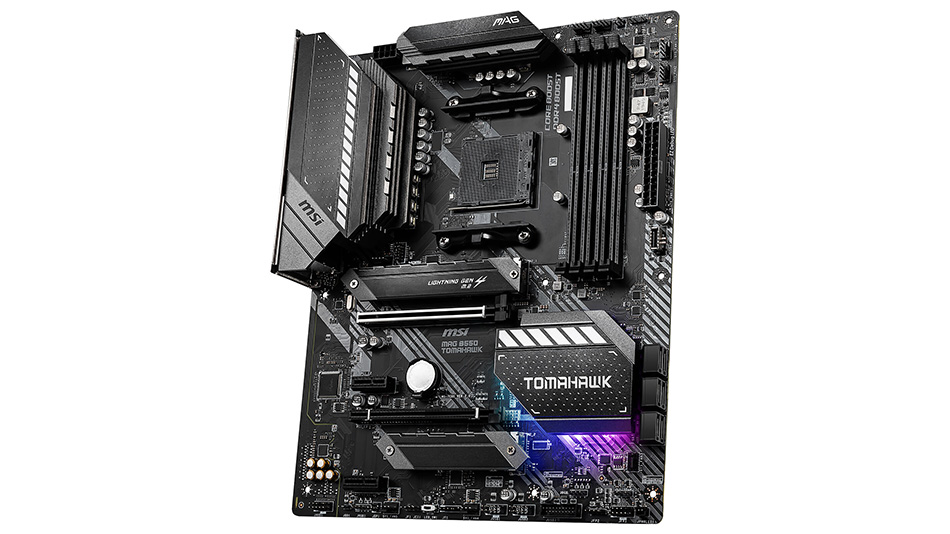

MSI MAG B550 Tomahawk, a high-performance and affordable motherboard

The MSI MAG B550 Tomahawk is an AMD Ryzen AM4 motherboard offering excellent value for money. Designed for the mid-range market, it incorporates advanced technical features at a competitive price. Its power supply is based on 10 digital phases for the processor and three additional phases for the ancillary components. This ensures optimal stability. The manufacturer offers a neat design that includes a rear I/O shroud. It also features two M.2 slots equipped with heat sinks suitable for modern configurations. 2.5 Gbps LAN connectivity and high-speed USB ports reinforce its strengths. This is a motherboard offering reliable performance without excessive cost.

Advanced connectivity and powerful networking on the MSI MAG B550 Tomahawk

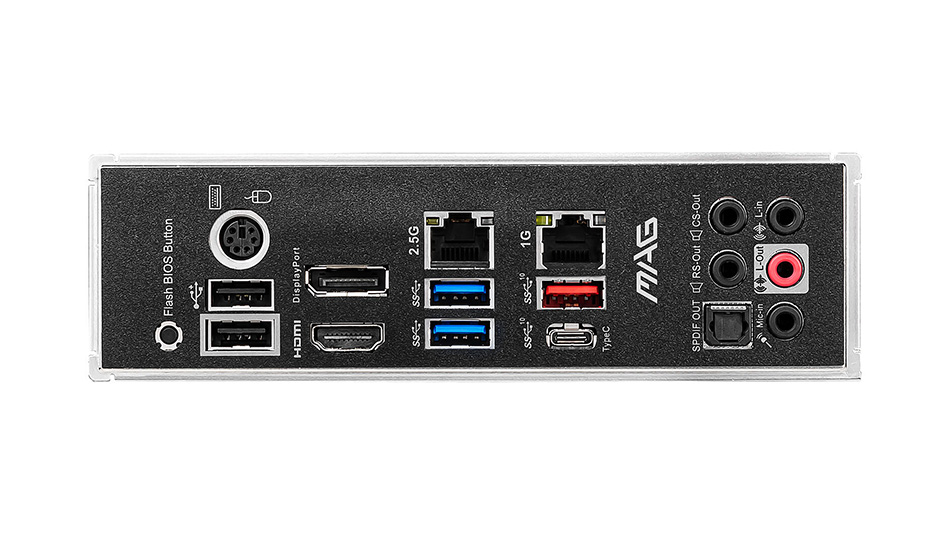

The MSI MAG B550 Tomahawk offers mid-range network performance and connectivity options. It features two LAN controllers: a Realtek RTL8125B offering speeds up to 2.5 Gbps. It also has a Realtek RTL8111H limited to 1 Gbps. Both optimize Ethernet connections for intensive use. As for the audio system, there’s the Realtek ALC1200 codec. This is a budget-friendly version of the ALC1220 that provides satisfactory sound for standard use. The rear I/O panel includes six USB ports, including a USB 3.2 Gen 2 Type-A and Type-C at 10 Gbps. There are also USB 3.2 Gen 1 and USB 2.0 ports. Two RJ-45 ports, five 3.5mm jacks, an S/PDIF port, an HDMI port, and a DisplayPort complete the package. There’s also a BIOS flash button for easy updates.

Optimized memory performance and Dragon Center software

The MSI MAG B550 Tomahawk motherboard offers advanced technical features in RAM management. It supports RAM sticks up to 4000 MHz for single-rank modules. This model supports up to 3600 MHz for dual-rank modules, providing flexibility suitable for intermediate configurations. Thanks to its ability to stabilize frequencies at 3200 MHz and 3600 MHz, it effectively meets the requirements of the majority of users. In addition, the Dragon Center software , included with the card, reinforces its attractiveness. Here we have a versatile tool that allows you to control RGB LEDs, monitor components and more. The program also allows you to perform overclocking under Windows, manage network settings and optimize the gaming experience.

MSI MAG B550 Tomahawk, easy installation and optimized BIOS

The MSI MAG B550 Tomahawk motherboard features a smooth installation and ergonomic design. Cabling is made easy thanks to the strategic positioning of the connectors. Equipped with Click BIOS 5, this model offers an intuitive interface with an EZ mode to quickly manage system settings. It is thus possible to select a boot device, activate memory profiles or flash the BIOS. The advanced section allows overclocking and customization of the processor and RAM performance. The connectivity headers (USB-C, USB 3.0, SATA 3.0) are also well positioned, optimizing modularity and simplifying integration into PC configurations.
